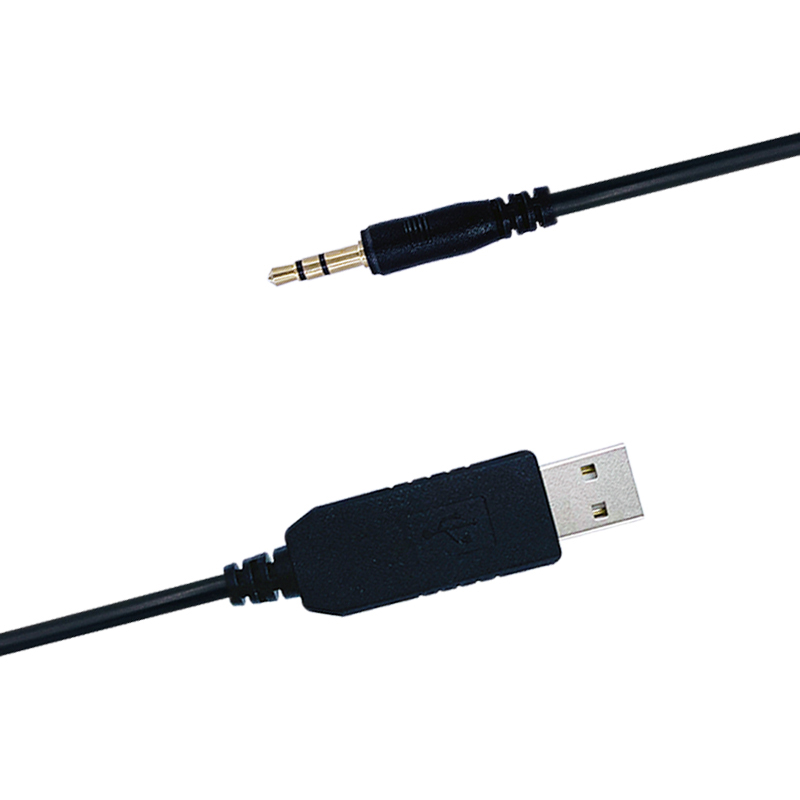

FTDI USB RS232 to TRS Mini 3.5MM Audio Jack Console Cable
Description
Cable: 28AWG *3C, round cable
Conductor: Oxygen-free Copper
CE, RoHS Certificate
Color: Black colr, other color can be customized
Length: 1.8M in stock, other length can be customized
Connector A: USB 2.0 A Male
Connector TRS 3.5mm connector
Chipset: FTDI
Molding: PVC material, RoHS complaint
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
Product Description
FTDI FT232RL USB RS232 TO TRS 3.5MM 3P AUDIO JACK AJ PLUG CONVERTER INTEL GALILEO BOARD CONSOLE CABLE COMPATIBLE USB-RS232-AJ
This is an RS232 serial cable, not a TTL level cable

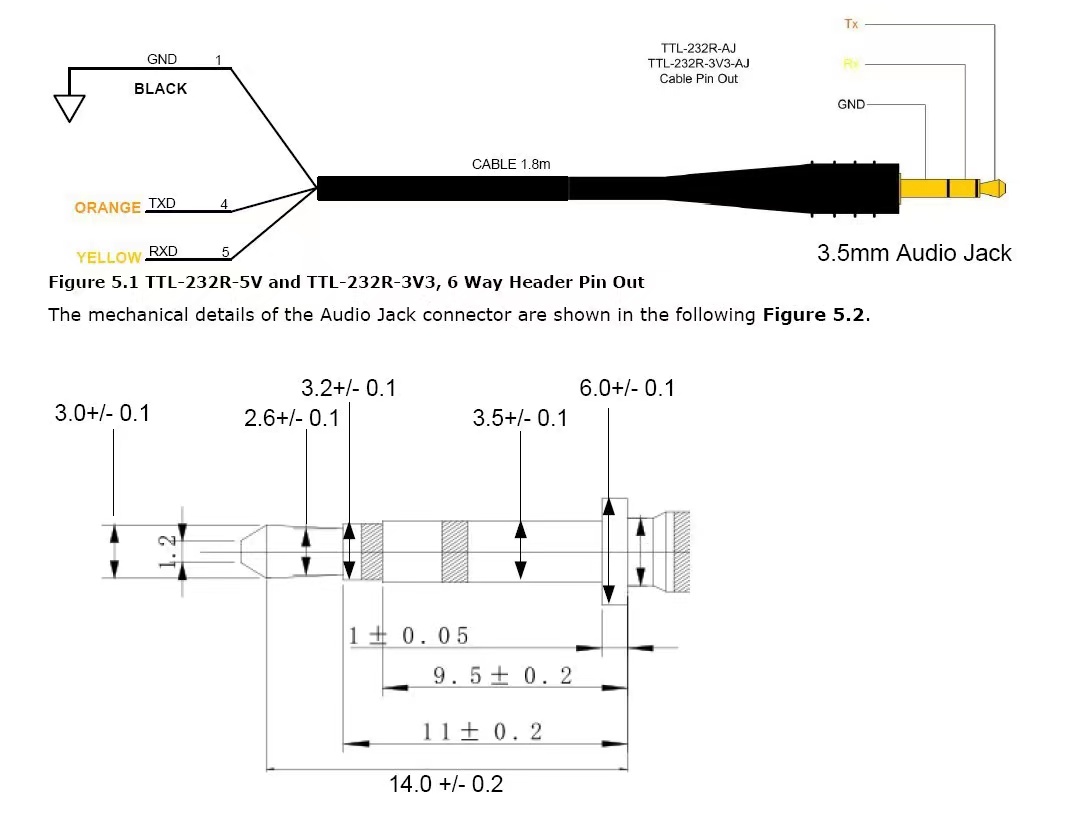

Output signal: Tip-RXD, Ring-TXD, Sleeve-GND
Operating Systems:
Windows
10/8/8.1/7/Windows Server 2008/2003/Vista/XP/98
Linux
M
OS X/9/8
Windows
CE.NET (Version 4.2 and greater)
Android
32 and 64 bit operating systems are both supported.
FTDI DRIVER DOWNLOADING:https://ftdichip.com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:https://ftdichip.com/document/installation-guides/
Package Contents:
1 X FTDI USB to 3.5MM AJ Cable
Length: 1.8M/6FT, 3.6M/12FT(Approx.)
